Browsing by Author "Paez, Maritza"

Now showing 1 - 5 of 5
  • Thumbnail Image
    Item

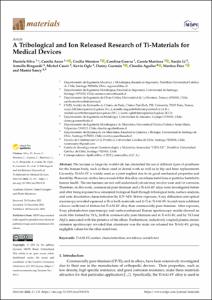

    A Tribological and Ion Released Research of Ti-Materials for Medical Devices
    (2021) Silva, Daniela ; Montero, M. Cecilia ; Guerra, Carolina ; Martinez Ugalde, Carola ; Li, Xuejie ; Ringuedé, Armelle ; Cassir, Michel ; Ogle, Kevin ; Guzman, Danny ; Aguilar, Claudio ; Paez, Maritza ; Sancy, Mamié
    The increase in longevity worldwide has intensified the use of different types of prostheses for the human body, such as those used in dental work as well as in hip and knee replacements. Currently, Ti-6Al-4V is widely used as a joint implant due to its good mechanical properties and durability. However, studies have revealed that this alloy can release metal ions or particles harmful to human health. The mechanisms are not well understood yet and may involve wear and/or corrosion. Therefore, in this work, commercial pure titanium and a Ti-6Al-4V alloy were investigated before and after being exposed to a simulated biological fluid through tribological tests, surface analysis, and ionic dissolution characterization by ICP-AES. Before exposure, X-ray diffraction and optical microscopy revealed equiaxed alpha-Ti in both materials and beta-Ti in Ti-6Al-4V. Scratch tests exhibited a lower coefficient of friction for Ti-6Al-4V alloy than commercially pure titanium. After exposure, X-ray photoelectron spectroscopy and surface-enhanced Raman spectroscopy results showed an oxide film formed by TiO2, both in commercially pure titanium and in Ti-6Al-4V, and by TiO and Al2O3 associated with the presence of the alloys. Furthermore, inductively coupled plasma atomic emission spectroscopy revealed that aluminum was the main ion released for Ti-6Al-4V, giving negligible values for the other metal ions.
  • No Thumbnail Available
    Item
    Alumoxane film for corrosion protection of 2024 aluminum alloy
    (2023) Vejar, Nelson; Rojas, Javier; Alvarado, Claudia; Solis, Roberto; Pineda, Fabiola; Sancy, Mamie; Munoz, Lisa; Paez, Maritza
    Alumoxane film on anodized 2024 was obtained using stearic acid to prevent corrosion in a chloride medium. A cleaning pretreatment was applied to the metal surface to improve the adhesion and formation of the alumoxane film using three different sprays, ethanol, water, and NaOH. Then a molten stearic acid was applied to form an alumoxane. The obtained films were characterized by X-ray photoelectron spectroscopy and glow discharge optical emission spectroscopy, and electrochemical techniques, such as linear sweep voltammetry and electrochemical impedance spectroscopy, evaluated the corrosion protection. The surface analyses suggested an interaction between the boehmite and stearic acid to form alumoxane, and the electrochemical results revealed that alumoxane film using ethanol significantly improved the protection against corrosion due to the formation of compact and homogeneous films with a hydrophobic characteristic for the 2024-T3 alloy. & COPY; 2023 The Author(s). Published by Elsevier B.V. This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/).
  • No Thumbnail Available
    Item
    Effect of Plasma Argon Pretreatment on the Surface Properties of AZ31 Magnesium Alloy
    (2023) Montero, Cecilia; Ramirez, Cristian Gino; Munoz, Lisa; Sancy, Mamie; Azocar, Manuel; Flores, Marcos; Artigas, Alfredo; Zagal, Jose H.; Zhou, Xiaorong; Monsalve, Alberto; Paez, Maritza
    Climate change has evidenced the need to reduce carbon dioxide emissions into the atmosphere, and so for transport applications, lighter weight alloys have been studied, such as magnesium alloys. However, they are susceptible to corrosion; therefore, surface treatments have been extensively studied. In this work, the influence of argon plasma pretreatment on the surface properties of an AZ31 magnesium alloy focus on the enhancement of the reactivity of the surface, which was examined by surface analysis techniques, electrochemical techniques, and gravimetric measurements. The samples were polished and exposed to argon plasma for two minutes in order to activate the surface. Contact angle measurements revealed higher surface energy after applying the pretreatment, and atomic force microscopy showed a roughness increase, while X-Ray photoelectron spectroscopy showed a chemical change on the surface, where after pretreatment the oxygen species increased. Electrochemical measurements showed that surface pretreatment does not affect the corrosion mechanism of the alloy, while electrochemical impedance spectroscopy reveals an increase in the original thickness of the surface film. This increase is likely associated with the high reactivity that the plasma pretreatment confers to the surface of the AZ31 alloy, affecting the extent of oxide formation and, consequently, the increase in its protection capacity. The weight loss measurements support the effect of the plasma pretreatment on the oxide thickness since the corrosion rate of the pretreated AZ31 specimens was lower than that of those that did not receive the surface pretreatment.
  • Thumbnail Image
    Item
    Electrochemical dynamic sensing of hydrogen peroxide in the presence of microorganisms
    (2019) Gulppi, Miguel; Muñoz, Lisa; Vejar, Nelson; Blarney, Jenny M.; González, Evelyn; Azócar, Manuel; Sancy, Mamié; Molina, Paulo; Zagal, José H.; Paez, Maritza
  • No Thumbnail Available
    Item
    Influence of Bacillus safensis and Bacillus pumilus on the electrochemical behavior of 2024-T3 aluminum alloy
    (2022) Vejar, Nelson; Gutierrez, Sebastian; Tareelap, Napachat; Alvarado, Claudia; Solis, Roberto; Guerra, Carolina; Pineda, Fabiola; Sancy, Mamie; Paez, Maritza
    In this work, electrochemical techniques were employed to evaluate the contribution to the corrosion and corrosion inhibition of 2024-T3 aluminum alloy by two Gram-positive bacteria. In addition, polarized impedance was used to determine the microbial effect on the cathodic and anodic reactions. These microorganisms were collected from a tropical environment due to the favorable bacterial growth of this kind of climate. The alloy was exposed to the sterile medium and inoculated for up to 12 days evaluating the microbiological and electrochemical behavior. The results by linear scanning voltammetry showed that the B. safensis and B. pumilus caused a dual effect of increase and decrease currents, and through electrochemical impedance spectroscopy, showed in some cases, inductive loop, which could be associated with local corrosion and another case, an increasing impedance could be related to protection. In addition, a morphological characterization was performed by scanning electron microscopy before and after exposure, showing an increase in copper precipitation in the vicinity of the intermetallic phases by bacteria, attributed to local corrosion, but, in general, a significant effect of damages was not observed. (C) 2021 Elsevier B.V. All rights reserved.
